Option 2: OAuth

Use this if you want to use SmartSpectra OAuth instead of an API key.

Android OAuth is currently documented for Play Store releases. For local development, internal QA, or sideloaded debug builds, use Option 1: API Key instead.

What you will change manually

You will touch exactly these things:

The app Gradle repositories and dependencies
The OAuth app registration in the Presage developer portal
The OAuth XML file at app/src/main/res/xml/presage_services.xml
app/src/main/java/com/example/coolvitals/MainActivity.kt

You do not need to create XML layouts or additional Kotlin files.

Result you should get

At the end, the app should show:

live camera preview
pulse rate, breathing rate, HRV RMSSD, and expression cards
arterial pressure waveform
chest and abdomen breathing waveforms
status text and a start/stop button
one portrait screen with no scrolling

Step 1 — Create the project

In Android Studio, create a new Android app project:

Select File → New → New Project...
Choose Empty Activity
Set Name to Cool Vitals
Set Package name to com.example.coolvitals
Set Language to Kotlin
Set Minimum SDK to API 28 or newer
Finish creating the project

If you already created the project, open it instead.

Open your Android app project in Android Studio.

Step 2 — Add repositories

In your project-level settings.gradle.kts, make sure the app can resolve AndroidX and SmartSpectra artifacts:

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        // Required only for versions ending in -SNAPSHOT.
        maven {
            url = uri("https://central.sonatype.com/repository/maven-snapshots/")
            mavenContent {
                snapshotsOnly()
            }
        }
    }
}

Step 3 — Add app dependencies

In app/build.gradle.kts, keep the dependencies generated by the Empty Activity template and add only these lines to the existing dependencies block:

dependencies {
    implementation("androidx.camera:camera-view:1.6.0")

    // Replace <stableSdkVersion> with the value from android/samples/version.properties.
    implementation("com.presagetech:smartspectra:<stableSdkVersion>")

    // For release-candidate snapshots, use this instead:
    // implementation("com.presagetech:smartspectra:<rcSdkVersion>-SNAPSHOT")
}

Version values:

For stable releases, replace <stableSdkVersion> with the value from android/samples/version.properties.
For release-candidate snapshots, replace <rcSdkVersion> with the value from android/samples/version.properties and keep the -SNAPSHOT suffix.
You can also browse stable releases on Maven Central.

Manual check:

Gradle sync succeeds
PreviewView, SmartSpectraSdk, and MetricType imports resolve

Step 4 — Get `presage_services.xml`

This file is not created by Android Studio and is not included automatically when you add the SmartSpectra dependency.

You need to get it from Presage first:

Sign in to the Presage developer portal: https://physiology.presagetech.com/
Open Account → Registered App for OAuth
Select Android
Enter your Android App ID. For this quickstart, use com.example.coolvitals.
Enter the SHA-256 fingerprint for the signing certificate used by the app you will release.
Click Register App ID
Download the Android OAuth config file named presage_services.xml

If you are testing a sandbox-enabled app registration, make sure the app row shows Sandbox Status: Enabled. Click Enable if sandbox is not already enabled.

See Google's Authenticating Your Client guide for Android signing certificate fingerprints.

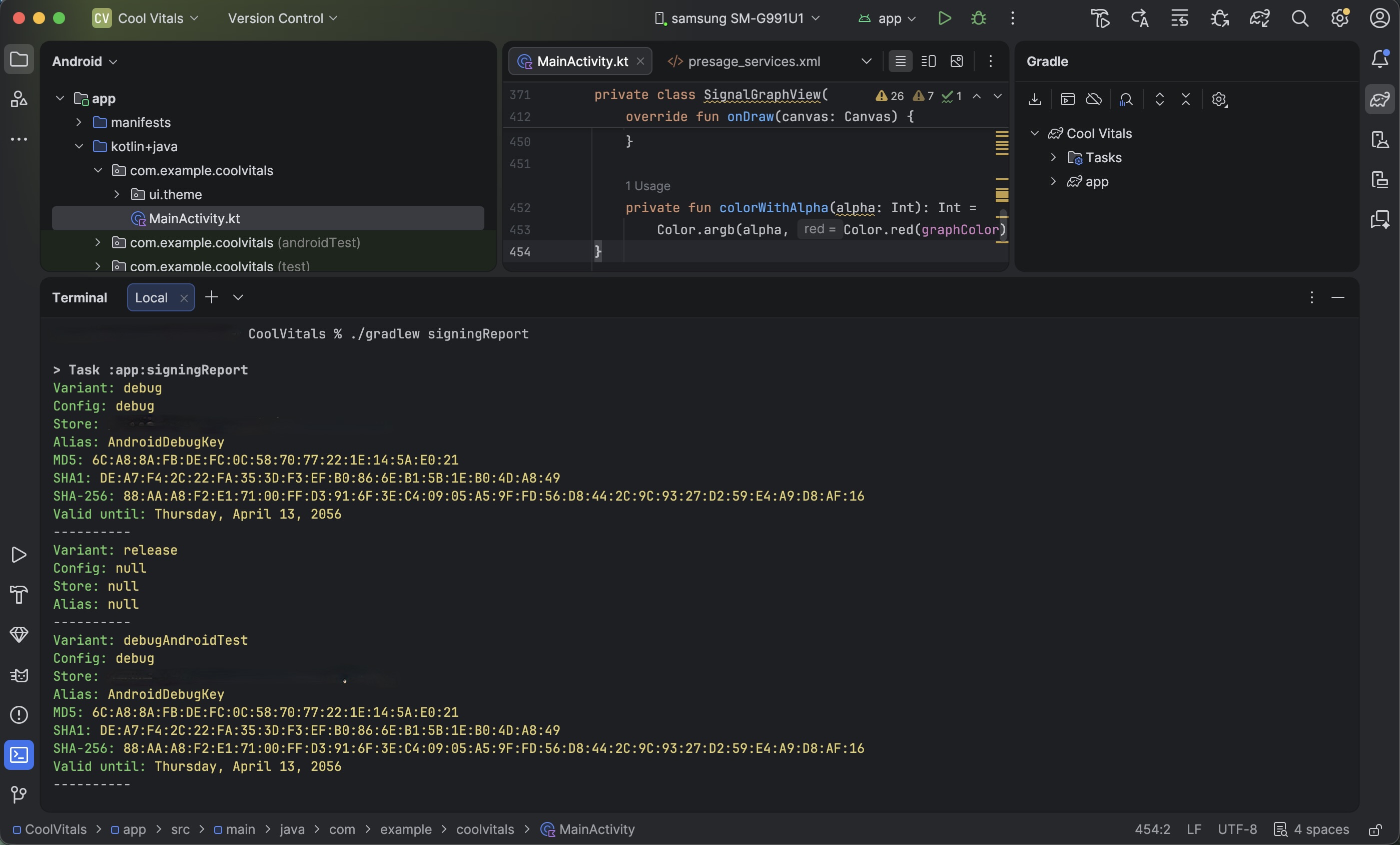

To get the SHA-256 fingerprint from Gradle, run:

./gradlew signingReport

If you cannot find a download for presage_services.xml, stop here. Ask Presage support or your Presage contact for the Android OAuth XML for this app.

Step 5 — Add `presage_services.xml` to the app

In Android Studio:

Create app/src/main/res/xml/ if it does not already exist
Put presage_services.xml in that directory
Confirm the file is packaged with the app target

The file should contain the OAuth fields provided by Presage, for example:

<?xml version="1.0" encoding="utf-8"?>
<resources xmlns:android="http://schemas.android.com/apk/res/android">
    <string name="oauth_enabled">true</string>
    <string name="client_id">your_client_id</string>
    <string name="sub">your_sub</string>
    <string name="config_version">1.0</string>
</resources>

Step 6 — Replace `MainActivity.kt`

In Android Studio:

Open app/src/main/java/com/example/coolvitals/MainActivity.kt
Delete everything in the file
Paste the full file below

Paste this entire file:

package com.example.coolvitals

import android.Manifest
import android.content.Context
import android.content.pm.PackageManager
import android.content.res.ColorStateList
import android.graphics.Canvas
import android.graphics.Color
import android.graphics.Paint
import android.graphics.Path
import android.graphics.drawable.GradientDrawable
import android.os.Bundle
import android.view.Gravity
import android.view.View
import android.view.ViewGroup
import android.widget.Button
import android.widget.FrameLayout
import android.widget.LinearLayout
import android.widget.TextView
import androidx.activity.ComponentActivity
import androidx.activity.result.contract.ActivityResultContracts
import androidx.camera.view.PreviewView
import androidx.core.content.ContextCompat
import androidx.lifecycle.lifecycleScope
import com.presagetech.smartspectra.CameraPosition
import com.presagetech.smartspectra.ProcessingStatus
import com.presagetech.smartspectra.SmartSpectraConfig
import com.presagetech.smartspectra.SmartSpectraSdk
import com.presagetech.smartspectra.proto.MetricTypesProto.MetricType
import com.presagetech.smartspectra.proto.MetricsProto.ExpressionType
import kotlin.math.max
import kotlin.math.min
import kotlin.math.roundToInt
import kotlinx.coroutines.launch

class MainActivity : ComponentActivity() {
    private companion object {
        val TEXT_PRIMARY = Color.WHITE
        val TEXT_MUTED = 0x80FFFFFF.toInt()
        val CARD_OVERLAY = 0xE61A2233.toInt()
        val CORAL = 0xFFFF6B6B.toInt()
        val TEAL = 0xFF4FCCC4.toInt()
        val VIOLET = 0xFFA58CF9.toInt()
        val MINT = 0xFF6EE7B7.toInt()
        val BLUE = 0xFF60A5FA.toInt()
        val AMBER = 0xFFFBBF24.toInt()
    }

    private val sdk by lazy { SmartSpectraSdk.shared }

    private lateinit var heartRateLabel: TextView
    private lateinit var expressionLabel: TextView
    private lateinit var breathingRateLabel: TextView
    private lateinit var hrvLabel: TextView
    private lateinit var chestGraphView: SignalGraphView
    private lateinit var abdomenGraphView: SignalGraphView
    private lateinit var bloodPressureGraphView: SignalGraphView
    private lateinit var statusLabel: TextView
    private lateinit var validationLabel: TextView
    private lateinit var toggleButton: Button

    private var latestChestTimestamp: Long = Long.MIN_VALUE
    private var latestAbdomenTimestamp: Long = Long.MIN_VALUE
    private var latestPressureTimestamp: Long = Long.MIN_VALUE

    private val cameraPermissionLauncher = registerForActivityResult(
        ActivityResultContracts.RequestPermission(),
    ) { granted ->
        if (granted) {
            startProcessing()
        } else {
            statusLabel.text = "Status: Camera required"
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        sdk.config.imageOutputEnabled = false
        sdk.config.cameraPosition = CameraPosition.FRONT
        sdk.config.requestedMetrics =
            SmartSpectraConfig.breathingMetrics +
                    SmartSpectraConfig.cardioMetrics +
                    listOf(MetricType.EXPRESSIONS)

        buildUi()
        bindSdk()
        resetMeasurementUi()
        statusLabel.text = "Status: Idle"
    }

    override fun onPause() {
        super.onPause()
        lifecycleScope.launch {
            when (sdk.processingStatus.value) {
                ProcessingStatus.RUNNING,
                ProcessingStatus.STARTING,
                ProcessingStatus.STOPPING,
                    -> runCatching { sdk.stop() }
                else -> Unit
            }
        }
    }

    private fun bindSdk() {
        sdk.processingStatus.observe(this) { updateProcessingStatus(it) }
        sdk.validationStatus.observe(this) { status ->
            validationLabel.text = "Validation: ${status?.code?.name?.replace('_', ' ') ?: "--"}"
        }
        sdk.error.observe(this) { error ->
            if (error != null) {
                statusLabel.text = "Error: ${error.message ?: "Unknown"}"
            }
        }
        sdk.metrics.observe(this) { metrics ->
            if (metrics == null) return@observe

            if (metrics.hasCardio()) {
                val pulse = metrics.cardio.pulseRateList
                    .lastOrNull { it.timestamp > 0 }
                    ?.value
                    ?.roundToInt()
                if (pulse != null) {
                    heartRateLabel.text = "$pulse bpm"
                }

                metrics.cardio.arterialPressureTraceList.forEach { sample ->
                    if (sample.timestamp > latestPressureTimestamp) {
                        latestPressureTimestamp = sample.timestamp
                        bloodPressureGraphView.appendValue(sample.value)
                    }
                }

                metrics.cardio.hrvList.lastOrNull()?.rmssd?.let { rmssd ->
                    if (rmssd > 0) {
                        hrvLabel.text = "${(rmssd * 10).roundToInt() / 10.0} ms"
                    }
                }
            }

            if (metrics.hasBreathing()) {
                if (metrics.breathing.rateCount > 0) {
                    val breathingRate = metrics.breathing.rateList.last().value.roundToInt()
                    breathingRateLabel.text = "$breathingRate bpm"
                }

                metrics.breathing.upperTraceList.forEach { sample ->
                    if (sample.timestamp > latestChestTimestamp) {
                        latestChestTimestamp = sample.timestamp
                        chestGraphView.appendValue(sample.value)
                    }
                }

                metrics.breathing.lowerTraceList.forEach { sample ->
                    if (sample.timestamp > latestAbdomenTimestamp) {
                        latestAbdomenTimestamp = sample.timestamp
                        abdomenGraphView.appendValue(sample.value)
                    }
                }
            }

            if (metrics.hasFace()) {
                val expression = metrics.face.expressionList.lastOrNull() ?: return@observe
                val topScore = expression.scoresList
                    .filter { it.confidence > 0f }
                    .maxByOrNull { it.confidence } ?: return@observe
                val expressionName = topScore.type.expressionName() ?: return@observe
                expressionLabel.text = "%-8.8s %3d%%".format(expressionName, topScore.confidence.roundToInt())
            }
        }

    }

    private fun buildUi() {
        val root = FrameLayout(this).apply {
            background = GradientDrawable(
                GradientDrawable.Orientation.TOP_BOTTOM,
                intArrayOf(0xFF0B1020.toInt(), 0xFF05070C.toInt()),
            )
        }

        val previewView = PreviewView(this).apply {
            contentDescription = "SmartSpectra preview output"
            setBackgroundColor(Color.BLACK)
            scaleType = PreviewView.ScaleType.FILL_CENTER
            implementationMode = PreviewView.ImplementationMode.COMPATIBLE
        }
        sdk.config.previewSurfaceProvider = previewView.surfaceProvider
        val previewParams = FrameLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            dp(465),
            Gravity.TOP,
        ).apply { topMargin = dp(33) }
        root.addView(previewView, previewParams)
        root.addView(
            View(this).apply {
                background = GradientDrawable(
                    GradientDrawable.Orientation.TOP_BOTTOM,
                    intArrayOf(0x33000000, 0x00000000, 0xCC05070C.toInt()),
                )
            },
            FrameLayout.LayoutParams(
                ViewGroup.LayoutParams.MATCH_PARENT,
                dp(465),
                Gravity.TOP,
            ).apply { topMargin = dp(33) },
        )

        val topPanel = LinearLayout(this).apply {
            orientation = LinearLayout.VERTICAL
            setPadding(dp(14), dp(33), dp(14), 0)
        }
        root.addView(
            topPanel,
            FrameLayout.LayoutParams(
                ViewGroup.LayoutParams.MATCH_PARENT,
                ViewGroup.LayoutParams.WRAP_CONTENT,
                Gravity.TOP,
            ),
        )

        val topRow = horizontalRow()
        statusLabel = statusPill("Status", "Idle", CORAL)
        validationLabel = statusPill("Validation", "--", AMBER)
        toggleButton = Button(this).apply {
            text = "Start"
            setAllCaps(false)
            setTextColor(Color.BLACK)
            backgroundTintList = ColorStateList.valueOf(Color.WHITE)
            setOnClickListener { toggleProcessing() }
        }
        topRow.addView(statusLabel, weightedParams(endMargin = dp(8)))
        topRow.addView(validationLabel, weightedParams(endMargin = dp(8)))
        topRow.addView(toggleButton, LinearLayout.LayoutParams(dp(92), dp(42)))
        topPanel.addView(topRow)

        val panel = LinearLayout(this).apply {
            orientation = LinearLayout.VERTICAL
            setPadding(dp(14), 0, dp(14), 0)
        }
        root.addView(
            panel,
            FrameLayout.LayoutParams(
                ViewGroup.LayoutParams.MATCH_PARENT,
                ViewGroup.LayoutParams.WRAP_CONTENT,
                Gravity.BOTTOM,
            ).apply { bottomMargin = dp(60) },
        )

        heartRateLabel = textView(sizeSp = 23f, color = CORAL, bold = true)
        breathingRateLabel = textView(sizeSp = 23f, color = TEAL, bold = true)
        val rateRow = horizontalRow()
        rateRow.addView(metricCard("Pulse Rate", heartRateLabel, CORAL), weightedParams(endMargin = dp(8)))
        rateRow.addView(metricCard("Breathing Rate", breathingRateLabel, TEAL), weightedParams())
        panel.addView(rateRow, matchWrapBottomMargin(dp(10)))

        hrvLabel = textView(sizeSp = 23f, color = TEXT_PRIMARY, bold = true)
        expressionLabel = textView(sizeSp = 20f, color = TEXT_PRIMARY, bold = true).apply {
            typeface = android.graphics.Typeface.create(android.graphics.Typeface.MONOSPACE, android.graphics.Typeface.BOLD)
            includeFontPadding = false
        }
        val summaryRow = horizontalRow()
        summaryRow.addView(metricCard("HRV RMSSD", hrvLabel, MINT), weightedParams(endMargin = dp(8)))
        summaryRow.addView(metricCard("Expression", expressionLabel, AMBER), weightedParams())
        panel.addView(summaryRow, matchWrapBottomMargin(dp(10)))

        bloodPressureGraphView = SignalGraphView(this, VIOLET)
        panel.addView(waveformCard("Arterial Pressure", bloodPressureGraphView), matchWrapBottomMargin(dp(10)))

        chestGraphView = SignalGraphView(this, TEAL)
        abdomenGraphView = SignalGraphView(this, BLUE)
        val breathingRow = horizontalRow()
        breathingRow.addView(waveformCard("Chest Waveform", chestGraphView), weightedParams(endMargin = dp(8)))
        breathingRow.addView(waveformCard("Abdomen Waveform", abdomenGraphView), weightedParams())
        panel.addView(breathingRow, matchHeight(dp(126)))

        setContentView(root)
    }

    private fun toggleProcessing() {
        when (sdk.processingStatus.value) {
            ProcessingStatus.RUNNING -> lifecycleScope.launch { runCatching { sdk.stop() } }
            ProcessingStatus.STARTING, ProcessingStatus.STOPPING -> Unit
            else -> startProcessing()
        }
    }

    private fun startProcessing() {
        if (ContextCompat.checkSelfPermission(this, Manifest.permission.CAMERA)
            != PackageManager.PERMISSION_GRANTED
        ) {
            cameraPermissionLauncher.launch(Manifest.permission.CAMERA)
            return
        }
        lifecycleScope.launch {
            resetMeasurementUi()
            runCatching { sdk.start() }
                .onFailure {
                    statusLabel.text = "Error: ${it.message ?: "Unknown"}"
                }
        }
    }

    private fun updateProcessingStatus(status: ProcessingStatus?) {
        when (status) {
            ProcessingStatus.IDLE -> {
                statusLabel.text = "Status: Idle"
                toggleButton.text = "Start"
                toggleButton.isEnabled = true
            }
            ProcessingStatus.STARTING -> {
                statusLabel.text = "Status: Starting"
                toggleButton.text = "Starting..."
                toggleButton.isEnabled = false
            }
            ProcessingStatus.RUNNING -> {
                statusLabel.text = "Status: Running"
                toggleButton.text = "Stop"
                toggleButton.isEnabled = true
            }
            ProcessingStatus.STOPPING -> {
                statusLabel.text = "Status: Stopping"
                toggleButton.text = "Stopping..."
                toggleButton.isEnabled = false
            }
            ProcessingStatus.ERROR -> {
                toggleButton.text = "Start"
                toggleButton.isEnabled = true
            }
            null -> Unit
        }
    }

    private fun resetMeasurementUi() {
        latestChestTimestamp = Long.MIN_VALUE
        latestAbdomenTimestamp = Long.MIN_VALUE
        latestPressureTimestamp = Long.MIN_VALUE
        chestGraphView.reset()
        abdomenGraphView.reset()
        bloodPressureGraphView.reset()
        heartRateLabel.text = "-- bpm"
        expressionLabel.text = "--"
        breathingRateLabel.text = "-- bpm"
        hrvLabel.text = "-- ms"
    }

    private fun card(buildChildren: LinearLayout.() -> Unit): LinearLayout =
        LinearLayout(this).apply {
            orientation = LinearLayout.VERTICAL
            background = GradientDrawable().apply {
                setColor(CARD_OVERLAY)
                cornerRadius = dp(20).toFloat()
            }
            setPadding(dp(12), dp(8), dp(12), dp(8))
            buildChildren()
        }

    private fun metricCard(title: String, value: TextView, accent: Int): LinearLayout =
        card {
            addView(textView(title, sizeSp = 12f, color = TEXT_MUTED, bold = true))
            addView(value, matchWrapTopMargin(dp(4)))
        }.apply {
            background = GradientDrawable().apply {
                setColor(CARD_OVERLAY)
                setStroke(dp(1), colorWithAlpha(accent, 70))
                cornerRadius = dp(20).toFloat()
            }
        }

    private fun waveformCard(title: String, graphView: SignalGraphView): LinearLayout =
        card {
            addView(textView(title, sizeSp = 12f, color = TEXT_PRIMARY, bold = true))
            addView(graphView, matchHeight(dp(78)).apply { topMargin = dp(6) })
        }

    private fun statusPill(title: String, value: String, accent: Int): TextView =
        textView("$title: $value", sizeSp = 12f, color = TEXT_PRIMARY, bold = true).apply {
            gravity = Gravity.CENTER_VERTICAL
            setPadding(dp(10), 0, dp(10), 0)
            background = GradientDrawable().apply {
                setColor(0x26FFFFFF)
                setStroke(dp(1), colorWithAlpha(accent, 90))
                cornerRadius = dp(18).toFloat()
            }
        }

    private fun horizontalRow(): LinearLayout =
        LinearLayout(this).apply {
            orientation = LinearLayout.HORIZONTAL
            gravity = Gravity.CENTER_VERTICAL
        }

    private fun textView(
        text: String = "",
        sizeSp: Float,
        color: Int,
        bold: Boolean = false,
    ): TextView = TextView(this).apply {
        this.text = text
        textSize = sizeSp
        setTextColor(color)
        if (bold) typeface = android.graphics.Typeface.DEFAULT_BOLD
    }

    private fun matchWrapBottomMargin(bottomMargin: Int): LinearLayout.LayoutParams =
        LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT,
        ).apply { this.bottomMargin = bottomMargin }

    private fun matchHeight(height: Int): LinearLayout.LayoutParams =
        LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            height,
        )

    private fun matchWrapTopMargin(topMargin: Int): LinearLayout.LayoutParams =
        LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.WRAP_CONTENT,
        ).apply { this.topMargin = topMargin }

    private fun weightedParams(endMargin: Int = 0): LinearLayout.LayoutParams =
        LinearLayout.LayoutParams(0, ViewGroup.LayoutParams.WRAP_CONTENT, 1f).apply {
            marginEnd = endMargin
        }

    private fun dp(value: Int): Int = (value * resources.displayMetrics.density).roundToInt()

    private fun colorWithAlpha(color: Int, alpha: Int): Int =
        Color.argb(alpha, Color.red(color), Color.green(color), Color.blue(color))

    private fun ExpressionType.expressionName(): String? =
        when (this) {
            ExpressionType.ANGRY -> "Angry"
            ExpressionType.CONTEMPT -> "Contempt"
            ExpressionType.DISGUST -> "Disgust"
            ExpressionType.FEAR -> "Fear"
            ExpressionType.HAPPY -> "Happy"
            ExpressionType.NEUTRAL -> "Neutral"
            ExpressionType.SAD -> "Sad"
            ExpressionType.SURPRISE -> "Surprise"
            else -> null
        }
}

private class SignalGraphView(
    context: Context,
    private val graphColor: Int,
) : View(context) {
    private companion object {
        const val GRID_ALPHA = 12
        const val LINE_ALPHA = 170
    }

    private val samples = ArrayDeque<Float>()
    private val maxPoints = 200
    private val inset = 10f
    private val linePath = Path()

    private val gridPaint = Paint(Paint.ANTI_ALIAS_FLAG).apply {
        color = Color.argb(GRID_ALPHA, 255, 255, 255)
        strokeWidth = 1f
        style = Paint.Style.STROKE
    }

    private val linePaint = Paint(Paint.ANTI_ALIAS_FLAG).apply {
        color = colorWithAlpha(LINE_ALPHA)
        strokeWidth = 3.5f
        style = Paint.Style.STROKE
        strokeCap = Paint.Cap.ROUND
        strokeJoin = Paint.Join.ROUND
    }

    fun appendValue(value: Float) {
        samples.addLast(value)
        while (samples.size > maxPoints) {
            samples.removeFirst()
        }
        invalidate()
    }

    fun reset() {
        samples.clear()
        invalidate()
    }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
        val sampleCount = samples.size
        if (sampleCount < 2) return

        val drawLeft = inset
        val drawTop = inset
        val drawRight = width - inset
        val drawBottom = height - inset
        val drawWidth = drawRight - drawLeft
        val drawHeight = drawBottom - drawTop

        for (gridLine in 1..3) {
            val y = drawTop + drawHeight * (1f - gridLine / 4f)
            canvas.drawLine(drawLeft, y, drawRight, y, gridPaint)
        }

        var minValue = Float.POSITIVE_INFINITY
        var maxValue = Float.NEGATIVE_INFINITY
        samples.forEach {
            minValue = min(minValue, it)
            maxValue = max(maxValue, it)
        }
        val range = if (maxValue - minValue == 0f) 1f else maxValue - minValue

        linePath.reset()
        samples.forEachIndexed { index, value ->
            val x = drawLeft + drawWidth * index / (sampleCount - 1)
            val normalized = (value - minValue) / range
            val y = drawBottom - normalized * drawHeight
            if (index == 0) {
                linePath.moveTo(x, y)
            } else {
                linePath.lineTo(x, y)
            }
        }

        canvas.drawPath(linePath, linePaint)
    }

    private fun colorWithAlpha(alpha: Int): Int =
        Color.argb(alpha, Color.red(graphColor), Color.green(graphColor), Color.blue(graphColor))
}

If OAuth is wired correctly, the app should start without setting sdk.config.apiKey. If startup fails with an authentication error, verify that presage_services.xml is present in app/src/main/res/xml/ and that the OAuth app registration matches the installed app.
