C++ on macOS

Supported Platforms

For platforms not listed above, contact support@presagetech.com if you have a specific need.

Installation

Prerequisites

• Xcode with Command Line Tools (provides a C++17 toolchain and the Swift compiler)
• Homebrew
• API key from physiology.presagetech.com
• Apple Development signing identity — required for SDK startup on macOS

Install Xcode Command Line Tools if you do not have them:

xcode-select --install

Add the SDK

The Homebrew formula installs the self-contained SmartSpectra SDK and exposes its CMake package metadata. You do not need to install OpenCV, protobuf, or other SDK runtime libraries separately — the formula declares them as dependencies and Homebrew installs them automatically.

brew tap presage/smartspectra https://github.com/Presage-Security/homebrew-smartspectra
brew install presage/smartspectra/smartspectra

For the release-candidate channel, install smartspectra-rc instead:

brew install presage/smartspectra/smartspectra-rc

Verify the install

After Homebrew finishes, confirm the SDK is wired up before opening Xcode:

pkg-config --modversion SmartSpectra
ls /opt/homebrew/lib/cmake/SmartSpectra

pkg-config should print the installed SDK version. The ls should list the SmartSpectra CMake config directory the formula installed (this is what find_package(SmartSpectra CONFIG REQUIRED) in your own CMake project will pick up — see "Installed Paths" below). If either fails, re-run brew install and check brew doctor.

Permissions

SmartSpectra's default macOS builds require a signed host app with the keychain entitlements needed for the SDK. This applies to SDK startup in general, including file-based processing.

The SwiftUI sample below ships with the required entitlements already configured. For your own integrations, mirror the sample's smartspectra_swift_ui.entitlements file (stable | rc).

Example

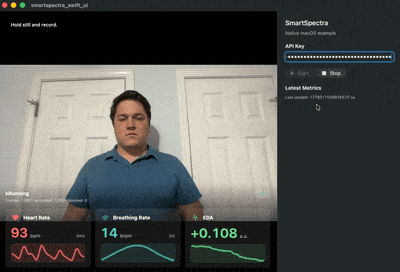

The recommended starting point is the SmartSpectra SwiftUI macOS sample, a native SwiftUI app that opens directly in Xcode and links against the Homebrew-installed SDK. It demonstrates camera capture, validation status, breathing/cardio metrics, and trend traces end to end.

Source: Presage-Security/SmartSpectra — cpp/samples/macos_swiftui_example

Clone and verify the environment

Match the branch to the Homebrew formula you installed: main for the stable smartspectra formula, rc for the smartspectra-rc formula.

Stable:

git clone --branch main https://github.com/Presage-Security/SmartSpectra.git
cd SmartSpectra/cpp/samples/macos_swiftui_example
./scripts/check-requirements.sh

Release candidate:

git clone --branch rc https://github.com/Presage-Security/SmartSpectra.git
cd SmartSpectra/cpp/samples/macos_swiftui_example
./scripts/check-requirements.sh

The script checks the Homebrew SDK, required model files, Vulkan/MoltenVK setup, the SDK graph asset path, and code-signing visibility. To apply safe runtime fixes (install missing Homebrew packages), run:

./scripts/check-requirements.sh --fix

Open in Xcode

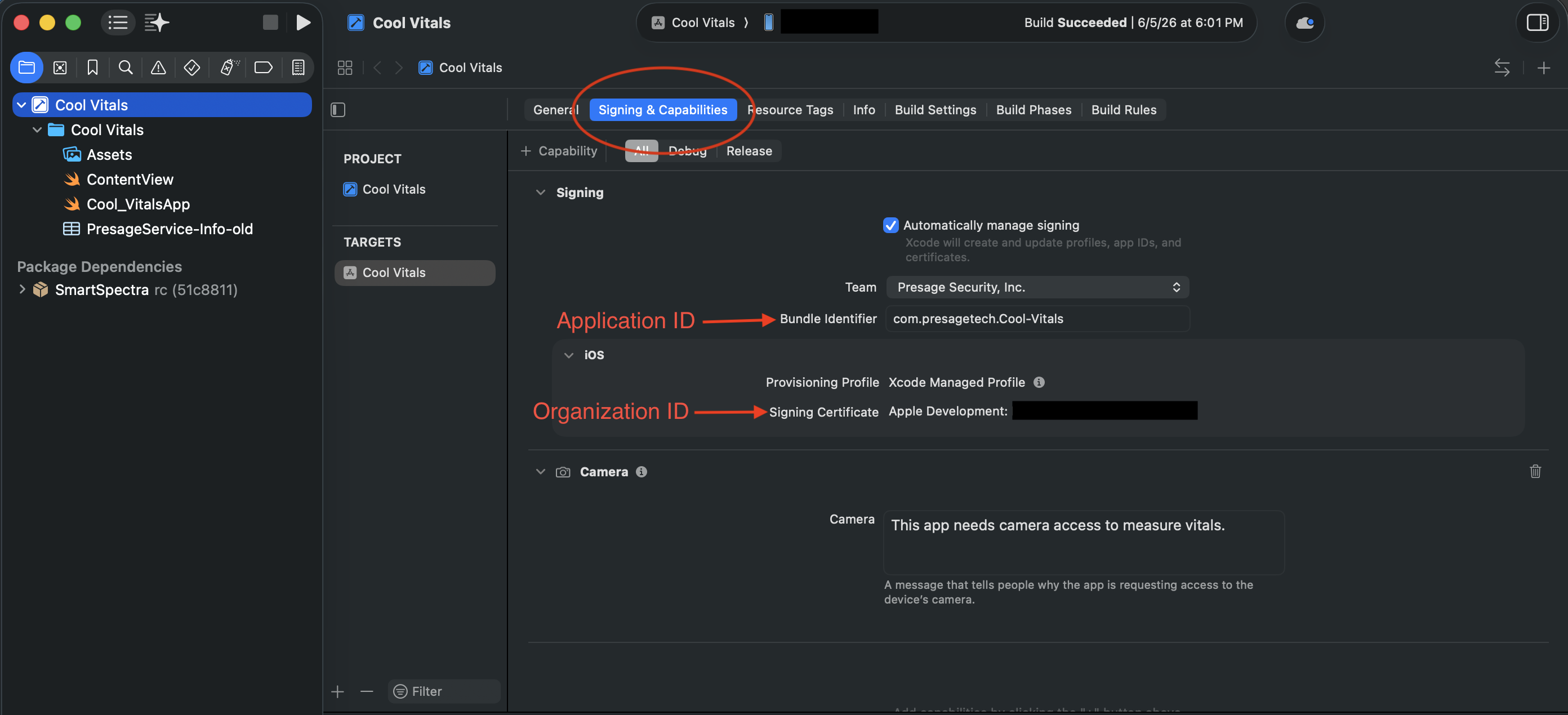

Open smartspectra_swift_ui.xcodeproj, select the smartspectra_swift_ui scheme, and configure signing on the app target under Signing & Capabilities:

Team             = your Apple Development team
Bundle Identifier = a unique identifier for your machine or organization

To find your Team ID, open Xcode > Settings > Accounts, select your Apple ID and team, and read the Team ID value. From the terminal:

security find-identity -v -p codesigning

The 10-character ID in parentheses at the end of an Apple Development identity is your Team ID.

Press Run. Enter your SMARTSPECTRA_API_KEY in the app and press Start. On first launch, allow camera access when macOS prompts.

Configuration

If your Homebrew prefix is not /opt/homebrew, open the project's Build Settings and set:

HOMEBREW_PREFIX       = output of `brew --prefix`
SMARTSPECTRA_SDK_ROOT = $(HOMEBREW_PREFIX)

The project derives include and library paths from those two variables. The Validate Setup build phase checks the SDK header, library, interface headers, and OpenCV headers before compilation, so a wrong prefix surfaces early.

Additional Details

Installed Paths

On Apple Silicon Homebrew installs, the default paths are:

• Headers: /opt/homebrew/include/smartspectra/
• Libraries: /opt/homebrew/lib/
• CMake config: /opt/homebrew/lib/cmake/SmartSpectra/
• pkg-config: /opt/homebrew/lib/pkgconfig/SmartSpectra.pc

Consumer code includes SmartSpectra headers as:

#include <smartspectra/smartspectra.h>
#include <smartspectra/smartspectra_config.h>
#include <smartspectra/messages/metrics.h>

When linking from your own CMake project:

find_package(SmartSpectra CONFIG REQUIRED)
target_link_libraries(my_app PRIVATE SmartSpectra::SDK)

Release-Candidate Builds

Release-candidate builds are published as a separate Homebrew formula, smartspectra-rc, served by the same tap as the stable formula. Stable users see no change; RC opt-in is additive.

brew install presage/smartspectra/smartspectra-rc

Release candidates do not automatically migrate to the stable formula. After a stable release ships, uninstall smartspectra-rc and install smartspectra to return to the stable channel:

brew uninstall presage/smartspectra/smartspectra-rc
brew install presage/smartspectra/smartspectra

Next Steps

• Configure which metrics to compute
• Run headless without video output
• Migration Guide for upgrading from older SDK versions

Documentation

API reference available at C++ API Reference.

Troubleshooting

Runtime libraries or model files missing

If you see errors about a missing Vulkan loader, MoltenVK driver, or .tflite model files, run the sample's diagnostic script:

./scripts/check-requirements.sh --fix

It verifies the Homebrew SDK install, repairs the graph asset path, and reinstalls any missing runtime packages.

Metrics do not appear immediately

Keep the subject still and centered in the camera preview until validation reports that recording is OK.

For support: contact support@presagetech.com or submit a GitHub issue.
