SmartSpectra SDK
Swift

Option 2: OAuth

SmartSpectra Swift setup using OAuth instead of a hard-coded API key.

Use this if you want to use SmartSpectra OAuth instead of the API key.

What you will change manually

You will touch exactly these things:

  1. The app target package dependencies
  2. The app target camera permission
  3. The OAuth plist target membership
  4. Cool Vitals/ContentView.swift

You do not need to create any new Swift files.

Step 1 — Create the project

In Xcode, create a new iOS app project:

  1. Select FileNewProject...
  2. Choose iOSApp
  3. Set Product Name to Cool Vitals
  4. Set Interface to SwiftUI
  5. Set Language to Swift
  6. Save the project

If you already created the project, open it instead.

In Finder, open:

  • Cool Vitals/Cool Vitals.xcodeproj

Then select the app target in Xcode.

Step 2 — Add the SmartSpectra package

In Xcode:

  1. Click FileAdd Package Dependencies...
  2. Paste https://github.com/Presage-Security/SmartSpectra-Swift/
  3. For repeatable builds, choose Exact Version and enter a released tag such as 3.0.0
  4. Use Branchmain only when testing the latest final public release before pinning a version
  5. Add the package to the Cool Vitals app target

Manual check:

  • In the project navigator, you should now see Package Dependencies
  • SmartSpectra should be attached to the app target

Step 3 — Add camera permission

In Xcode:

  1. Select the Cool Vitals target
  2. Open the Info tab
  3. Add a new key named Privacy - Camera Usage Description

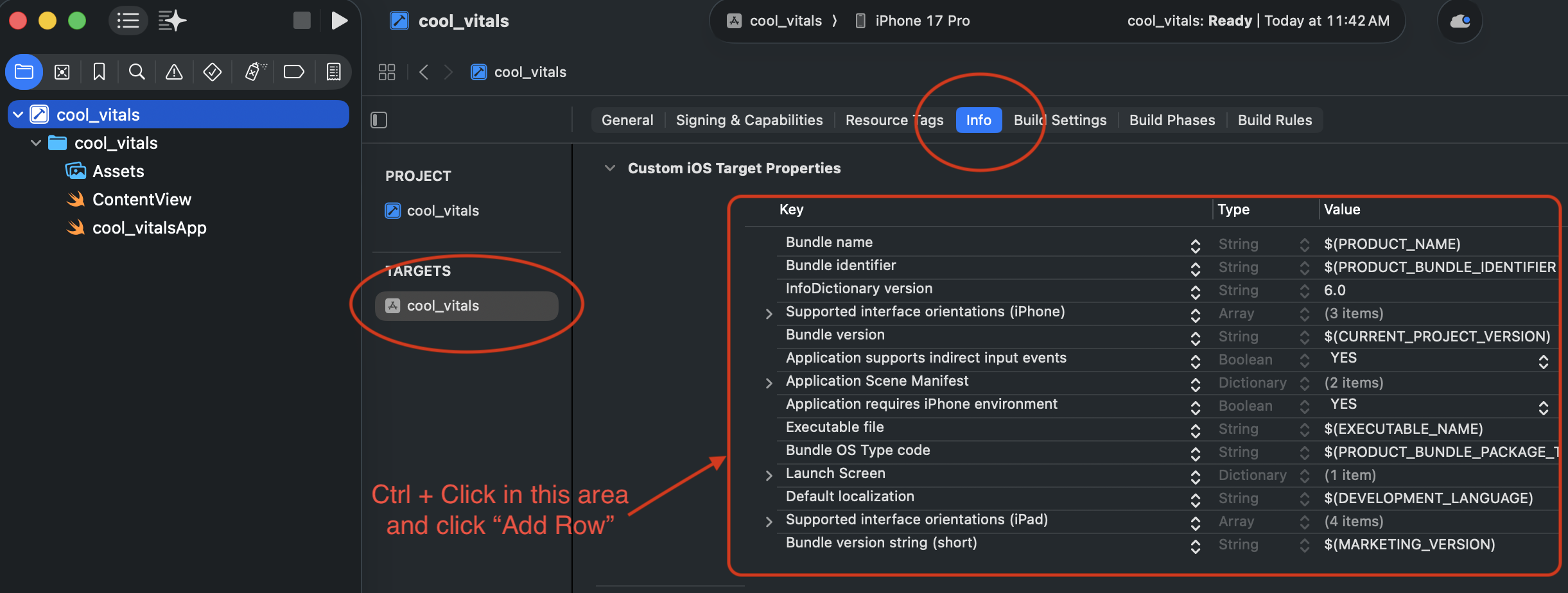

    NOTE Ctrl + Click on the Custom iOS Target Properties and click Add Row
  4. Set the value to This app needs camera access to measure vitals.

Step 4 — Get PresageService-Info.plist

This file does not come from Xcode.

This file is not created when you add the SmartSpectra package.

This file is not already inside your app project unless you or your team already downloaded it.

You need to get it from Presage first:

  1. Sign in to the Presage developer portal: https://physiology.presagetech.com/
  2. Register for OAuth in the Presage developer portal

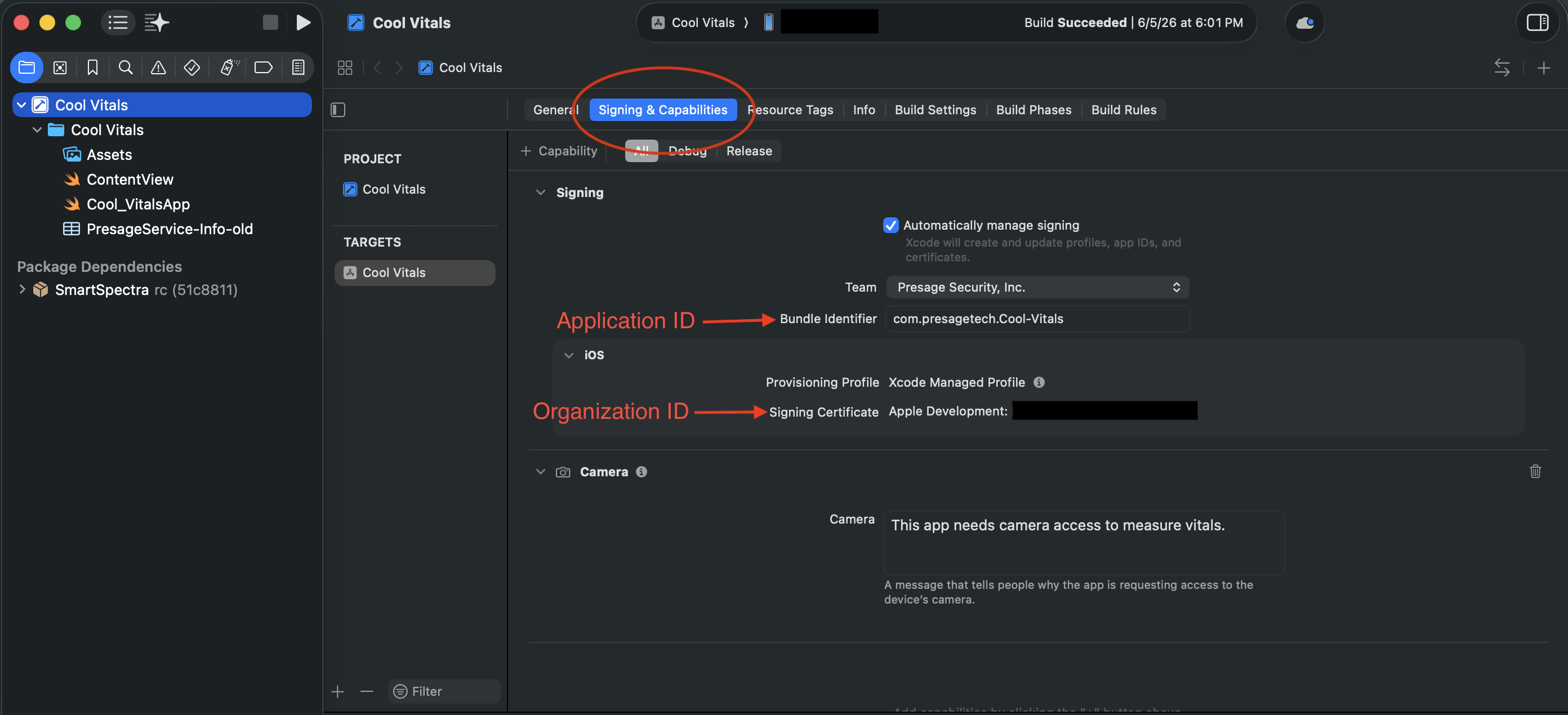

    • Your Bundle Identifier found in: Signing & Capabilities is what goes in the Application ID field
    • Your Team ID found in your Apple Developer Account in the Membership Details is what goes in the Organization ID field
    • Enable sandbox in the portal if you want to test locally by pushing XCode builds to your phone. When sandbox is turned off it allows app store and test flight builds only.
  3. Download the iOS OAuth config file named PresageService-Info.plist

If you cannot find a download for PresageService-Info.plist, stop here.

That means you do not have the OAuth config file yet. Ask Presage support or your Presage contact for the iOS OAuth plist for this app.

Step 5 — Add PresageService-Info.plist to Xcode

In Xcode:

  1. In Finder, locate the downloaded PresageService-Info.plist
  2. Drag that file from Finder into the Xcode project navigator
  3. When Xcode shows the add-file dialog:
    • enable Copy items if needed
    • make sure the Cool Vitals target is checked
  4. Click Finish

Step 6 — Replace ContentView.swift

In Xcode:

  1. Open Cool Vitals/ContentView.swift
  2. Delete everything in the file
  3. Paste the full file below

Paste this entire file:

import SwiftUI
import SmartSpectra
import AVFoundation

struct ContentView: View {
    private enum TraceWindow {
        static let rate = 120
        static let arterialWaveform = 240
        static let breathingWaveform = 180
    }

    private let sdk = SmartSpectraSDK.shared

    @State private var didAutoStart = false
    @State private var pulseRateBuffer: [MeasurementWithConfidence] = []
    @State private var breathingRateBuffer: [MeasurementWithConfidence] = []
    @State private var arterialPressureBuffer: [MeasurementWithConfidence] = []
    @State private var chestBuffer: [SmartSpectra.Measurement] = []
    @State private var abdomenBuffer: [SmartSpectra.Measurement] = []
    @State private var latestHrv: Hrv?
    @State private var latestExpressionScores: [ExpressionScore] = []

    init() {
        sdk.config.cameraPosition = .front
        sdk.config.imageOutputEnabled = true
        sdk.config.requestedMetrics =
            SmartSpectraConfig.breathingMetrics +
            SmartSpectraConfig.cardioMetrics + [
                .expressions,
            ]
    }

    private enum WaveformProminence {
        case primary
        case secondary
    }

    private var metrics: Metrics? { sdk.metrics }

    private var metricsUpdateToken: Int64 {
        [
            metrics?.cardio.pulseRate.last?.timestamp,
            metrics?.breathing.rate.last?.timestamp,
            metrics?.cardio.arterialPressureTrace.last?.timestamp,
            metrics?.breathing.upperTrace.last?.timestamp,
            metrics?.breathing.lowerTrace.last?.timestamp,
            metrics?.cardio.hrv.last?.timestamp,
            metrics?.face.expression.last?.timestamp,
        ]
        .compactMap { $0 }
        .max() ?? 0
    }

    private var pulseRateText: String {
        formatMetric(pulseRateBuffer.last.map { Double($0.value) }, digits: 0, suffix: " bpm")
    }

    private var breathingRateText: String {
        formatMetric(breathingRateBuffer.last.map { Double($0.value) }, digits: 0, suffix: " bpm")
    }

    private var hrvText: String {
        guard let value = latestHrv?.rmssd, value > 0 else { return "--" }
        return formatMetric(value, digits: 1, suffix: " ms")
    }

    private var latestExpressionScore: ExpressionScore? {
        latestExpressionScores.max(by: { $0.confidence < $1.confidence })
    }

    private var latestExpressionLabel: String {
        guard let score = latestExpressionScore else { return "--" }
        let name = String(expressionName(score.type).prefix(8))
        let paddedName = name + String(repeating: " ", count: max(0, 8 - name.count))
        let percent = confidenceText(score.confidence)
        let paddedPercent = String(repeating: " ", count: max(0, 4 - percent.count)) + percent
        return "\(paddedName) \(paddedPercent)"
    }

    private var pulseConfidenceColor: Color {
        confidenceColor(pulseRateBuffer.last?.confidence)
    }

    private var breathingConfidenceColor: Color {
        confidenceColor(breathingRateBuffer.last?.confidence)
    }

    private var arterialPressureSamples: [Double] {
        arterialPressureBuffer.map { Double($0.value) }
    }

    private var chestSamples: [Double] {
        chestBuffer.map { Double($0.value) }
    }

    private var abdomenSamples: [Double] {
        abdomenBuffer.map { Double($0.value) }
    }

    private var statusText: String {
        switch sdk.processingStatus {
        case .idle: return "Idle"
        case .starting: return "Starting"
        case .running: return "Running"
        case .stopping: return "Stopping"
        case .error: return "Error"
        @unknown default: return "Unknown"
        }
    }

    private var validationTitle: String {
        guard let validationStatus = sdk.validationStatus else { return "Waiting" }
        return validationName(validationStatus.code)
    }

    private var statusColor: Color {
        switch sdk.processingStatus {
        case .running: return .green
        case .starting, .stopping: return .orange
        case .error: return .red
        case .idle: return .gray
        @unknown default: return .gray
        }
    }

    private var validationColor: Color {
        guard let validationStatus = sdk.validationStatus else { return .gray }
        switch validationStatus.code {
        case .ok: return .green
        case .cameraTuning: return .orange
        default: return .yellow
        }
    }

    var body: some View {
        GeometryReader { geometry in
            let compact = geometry.size.height < 820
            let horizontalPadding: CGFloat = compact ? 12 : 16
            let topSpacing: CGFloat = compact ? 8 : 12
            let previewHeight = min(max(geometry.size.height * 0.26, 190), 250)

            VStack(spacing: topSpacing) {
                statusBar(compact: compact)
                    .zIndex(1)

                previewCard
                    .frame(height: previewHeight)
                    .zIndex(0)

                HStack(spacing: topSpacing) {
                    metricCard(
                        title: "Pulse Rate",
                        value: pulseRateText,
                        valueColor: pulseConfidenceColor,
                        accent: .red,
                        compact: compact
                    )
                    metricCard(
                        title: "Breathing Rate",
                        value: breathingRateText,
                        valueColor: breathingConfidenceColor,
                        accent: .cyan,
                        compact: compact
                    )
                }
                .frame(maxHeight: compact ? 82 : 92)

                HStack(spacing: topSpacing) {
                    metricCard(
                        title: "HRV RMSSD",
                        value: hrvText,
                        valueColor: .white,
                        accent: .mint,
                        compact: compact
                    )
                    metricCard(
                        title: "Expression",
                        value: latestExpressionLabel,
                        valueColor: .white,
                        accent: .orange,
                        compact: compact,
                        monospacedValue: true
                    )
                }
                .frame(maxHeight: compact ? 82 : 92)

                waveformCard(
                    title: "Arterial Pressure",
                    samples: arterialPressureSamples,
                    accent: .purple,
                    compact: compact,
                    prominence: .primary
                )
                .frame(height: compact ? 154 : 182)

                HStack(spacing: topSpacing) {
                    waveformCard(
                        title: "Chest Waveform",
                        samples: chestSamples,
                        accent: .cyan,
                        compact: compact,
                        prominence: .secondary
                    )
                    waveformCard(
                        title: "Abdomen Waveform",
                        samples: abdomenSamples,
                        accent: .blue,
                        compact: compact,
                        prominence: .secondary
                    )
                }
                .frame(height: compact ? 130 : 146)

            }
            .padding(.horizontal, horizontalPadding)
            .padding(.vertical, compact ? 10 : 14)
            .background(backgroundGradient.ignoresSafeArea())
        }
        .task {
            await startIfNeeded()
        }
        .task(id: metricsUpdateToken) {
            mergeCurrentMetrics()
        }
    }

    private var previewCard: some View {
        ZStack {
            if let image = sdk.imageOutput {
                Image(uiImage: image)
                    .resizable()
                    .aspectRatio(contentMode: .fill)
                    .frame(maxWidth: .infinity, maxHeight: .infinity)
                    .clipped()
            } else {
                LinearGradient(
                    colors: [Color(red: 0.16, green: 0.24, blue: 0.46), Color.black],
                    startPoint: .topLeading,
                    endPoint: .bottomTrailing
                )
                VStack(spacing: 10) {
                    Image(systemName: "camera.viewfinder")
                        .font(.system(size: 40, weight: .semibold))
                    Text("Camera preview will appear here")
                        .font(.headline)
                }
                .foregroundStyle(.white.opacity(0.92))
            }

            LinearGradient(
                colors: [.black.opacity(0.68), .black.opacity(0.12), .clear],
                startPoint: .bottom,
                endPoint: .top
            )
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .clipShape(RoundedRectangle(cornerRadius: 26, style: .continuous))
        .overlay(
            RoundedRectangle(cornerRadius: 26, style: .continuous)
                .stroke(.white.opacity(0.12), lineWidth: 1)
        )
        .shadow(color: .black.opacity(0.35), radius: 18, x: 0, y: 10)
    }

    private func statusBar(compact: Bool) -> some View {
        HStack(spacing: compact ? 8 : 10) {
            badge(title: "Status", value: statusText, color: statusColor)
            badge(title: "Validation", value: validationTitle, color: validationColor)
            Spacer(minLength: 8)
            Button(action: toggleMeasurement) {
                Text(sdk.processingStatus == .running ? "Stop" : "Start")
                    .font(.caption.bold())
                    .padding(.horizontal, compact ? 14 : 18)
                    .padding(.vertical, 10)
                    .background(.white, in: Capsule())
                    .foregroundStyle(.black)
            }
        }
    }

    private func metricCard(
        title: String,
        value: String,
        valueColor: Color,
        accent: Color,
        compact: Bool,
        monospacedValue: Bool = false
    ) -> some View {
        VStack(alignment: .leading, spacing: compact ? 6 : 8) {
            HStack(spacing: 6) {
                Circle()
                    .fill(accent)
                    .frame(width: 8, height: 8)
                Text(title)
                    .font(.caption.weight(.semibold))
                    .foregroundStyle(.white)
            }

            Text(value)
                .font(.system(size: compact ? 21 : 24, weight: .bold, design: monospacedValue ? .monospaced : .rounded))
                .foregroundStyle(valueColor)
                .monospacedDigit()
                .lineLimit(1)
                .minimumScaleFactor(0.7)

        }
        .dashboardCard()
    }

    private func waveformCard(
        title: String,
        samples: [Double],
        accent: Color,
        compact: Bool,
        prominence: WaveformProminence
    ) -> some View {
        VStack(alignment: .leading, spacing: compact ? 6 : 8) {
            VStack(alignment: .leading, spacing: 2) {
                Text(title)
                    .font(.caption.weight(.semibold))
                    .foregroundStyle(.white)
            }

            ZStack {
                RoundedRectangle(cornerRadius: 14, style: .continuous)
                    .fill(accent.opacity(0.12))

                if samples.count > 1 {
                    WaveformView(
                        samples: samples,
                        strokeColor: accent,
                        verticalPaddingFraction: prominence == .primary ? 0.14 : 0.08
                    )
                    .padding(prominence == .primary ? 8 : 10)
                }
            }
            .frame(maxHeight: .infinity)
            .overlay(
                RoundedRectangle(cornerRadius: 14, style: .continuous)
                    .stroke(accent.opacity(0.3), lineWidth: 1)
            )
        }
        .dashboardCard()
    }

    private func badge(title: String, value: String, color: Color) -> some View {
        HStack(spacing: 6) {
            Circle()
                .fill(color)
                .frame(width: 8, height: 8)
            Text("\(title): \(value)")
                .font(.caption.weight(.semibold))
        }
        .padding(.horizontal, 10)
        .padding(.vertical, 8)
        .background(.white.opacity(0.12), in: Capsule())
        .foregroundStyle(.white)
    }

    private func mergeCurrentMetrics() {
        guard let metrics else { return }

        if !metrics.cardio.pulseRate.isEmpty {
            pulseRateBuffer.appendProtoArray(contentsOf: metrics.cardio.pulseRate)
            pulseRateBuffer = Array(pulseRateBuffer.suffix(TraceWindow.rate))
        }

        if !metrics.breathing.rate.isEmpty {
            breathingRateBuffer.appendProtoArray(contentsOf: metrics.breathing.rate)
            breathingRateBuffer = Array(breathingRateBuffer.suffix(TraceWindow.rate))
        }

        if !metrics.cardio.arterialPressureTrace.isEmpty {
            arterialPressureBuffer.appendProtoArray(contentsOf: metrics.cardio.arterialPressureTrace)
            arterialPressureBuffer = Array(arterialPressureBuffer.suffix(TraceWindow.arterialWaveform))
        }

        if !metrics.breathing.upperTrace.isEmpty {
            chestBuffer.appendProtoArray(contentsOf: metrics.breathing.upperTrace)
            chestBuffer = Array(chestBuffer.suffix(TraceWindow.breathingWaveform))
        }

        if !metrics.breathing.lowerTrace.isEmpty {
            abdomenBuffer.appendProtoArray(contentsOf: metrics.breathing.lowerTrace)
            abdomenBuffer = Array(abdomenBuffer.suffix(TraceWindow.breathingWaveform))
        }

        if let hrv = metrics.cardio.hrv.last {
            latestHrv = hrv
        }

        if let scores = metrics.face.expression.last?.scores, !scores.isEmpty {
            latestExpressionScores = scores
        }
    }

    private func resetBuffers() {
        pulseRateBuffer.removeAll(keepingCapacity: true)
        breathingRateBuffer.removeAll(keepingCapacity: true)
        arterialPressureBuffer.removeAll(keepingCapacity: true)
        chestBuffer.removeAll(keepingCapacity: true)
        abdomenBuffer.removeAll(keepingCapacity: true)
        latestHrv = nil
        latestExpressionScores.removeAll(keepingCapacity: true)
    }

    private func toggleMeasurement() {
        Task {
            if sdk.processingStatus == .running || sdk.processingStatus == .starting {
                try? await sdk.stop()
            } else {
                resetBuffers()
                try? await sdk.start()
            }
        }
    }

    private func startIfNeeded() async {
        guard !didAutoStart else { return }
        didAutoStart = true
        guard sdk.processingStatus == .idle else { return }
        resetBuffers()
        try? await sdk.start()
    }

    private func confidenceText(_ confidence: Float?) -> String {
        guard let confidence, confidence.isFinite else { return "--" }
        let percent = min(max(Double(confidence), 0), 100)
        return "\(Int(percent.rounded()))%"
    }

    private func confidenceColor(_ confidence: Float?) -> Color {
        guard let confidence, confidence.isFinite else { return .white.opacity(0.65) }
        let percent = min(max(Double(confidence), 0), 100)
        switch percent {
        case 85...:
            return .green
        case 60..<85:
            return .yellow
        default:
            return .red
        }
    }

    private func formatMetric(_ value: Double?, digits: Int = 0, suffix: String = "") -> String {
        guard let value else { return "--" }
        if digits == 0 {
            return "\(Int(value.rounded()))\(suffix)"
        }
        return String(format: "% .\(digits)f", value).replacingOccurrences(of: " ", with: "") + suffix
    }

    private func validationName(_ code: ValidationCode) -> String {
        switch code {
        case .ok: return "OK"
        case .noFaceFound: return "No Face"
        case .multipleFacesFound: return "Multi Face"
        case .faceNotCentered: return "Off Center"
        case .faceSizeOutOfRange: return "Face Size"
        case .tooDark: return "Too Dark"
        case .tooBright: return "Too Bright"
        case .chestNotVisible: return "Chest Missing"
        case .cameraTuning: return "Tuning"
        @unknown default: return "Unknown"
        }
    }

    private func expressionName(_ type: ExpressionType) -> String {
        switch type {
        case .unspecified: return "Unspecified"
        case .angry: return "Angry"
        case .contempt: return "Contempt"
        case .disgust: return "Disgust"
        case .fear: return "Fear"
        case .happy: return "Happy"
        case .neutral: return "Neutral"
        case .sad: return "Sad"
        case .surprise: return "Surprise"
        case .UNRECOGNIZED(_): return "Unknown"
        @unknown default: return "Unknown"
        }
    }

    private var backgroundGradient: LinearGradient {
        LinearGradient(
            colors: [
                Color(red: 0.03, green: 0.05, blue: 0.12),
                Color(red: 0.07, green: 0.09, blue: 0.18),
                Color.black,
            ],
            startPoint: .topLeading,
            endPoint: .bottomTrailing
        )
    }
}

private struct WaveformView: View {
    let samples: [Double]
    let strokeColor: Color
    let verticalPaddingFraction: Double

    var body: some View {
        GeometryReader { geometry in
            Path { path in
                guard samples.count > 1 else { return }

                let minValue = samples.min() ?? 0
                let maxValue = samples.max() ?? 1
                let rawRange = max(maxValue - minValue, 0.0001)
                let padding = rawRange * verticalPaddingFraction
                let lowerBound = minValue - padding
                let upperBound = maxValue + padding
                let range = max(upperBound - lowerBound, 0.0001)

                for (index, sample) in samples.enumerated() {
                    let x = geometry.size.width * CGFloat(index) / CGFloat(samples.count - 1)
                    let normalized = (sample - lowerBound) / range
                    let y = geometry.size.height * (1 - normalized)

                    if index == 0 {
                        path.move(to: CGPoint(x: x, y: y))
                    } else {
                        path.addLine(to: CGPoint(x: x, y: y))
                    }
                }
            }
            .stroke(strokeColor, style: StrokeStyle(lineWidth: 2.2, lineCap: .round, lineJoin: .round))
        }
    }
}

private extension View {
    func dashboardCard() -> some View {
        self
            .padding(12)
            .background(
                RoundedRectangle(cornerRadius: 20, style: .continuous)
                    .fill(Color.white.opacity(0.08))
            )
            .overlay(
                RoundedRectangle(cornerRadius: 20, style: .continuous)
                    .stroke(Color.white.opacity(0.08), lineWidth: 1)
            )
    }
}

Step 7 — Build and run on a phone

In Xcode:

  1. Choose a physical iPhone as the run destination
  2. Build and run the app
  3. Allow camera access when iOS asks
  4. Wait a few seconds for camera tuning and signal stabilization

Do not use the simulator.

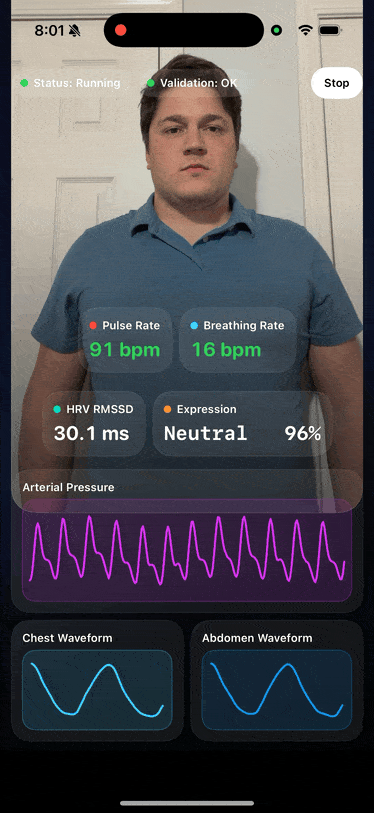

What success looks like

If the install is correct, you should see all of these:

  • Status and Validation chips are visible at the top
  • the preview is below the chips
  • the arterial pressure waveform is larger than the breathing waveforms
  • chest and abdomen waveforms both appear on screen
  • the guidance text is below those waveforms
  • the pulse and breath-rate numbers change color with confidence
  • expressions and HRV are reported

Expected OAuth check

If OAuth is wired correctly, you should not see this fallback log at launch:

  • PresageService-Info.plist not found. OAuth authentication will be disabled. Using API key authentication instead.

If you do see it, the plist is missing from the target or was not copied into the app.

Common manual mistakes

If the screen does not match the target state, check these first:

  • the package was added to the wrong target
  • ContentView.swift was only partially replaced
  • PresageService-Info.plist is not in target membership
  • the app is still running an older installed build on the phone
  • the app was run in the simulator instead of on a real device

On this page
