SmartSpectra SDK
C++C++ on Windows

C++ on Windows

Install and build the SmartSpectra C++ SDK on Windows.

SmartSpectra C++ Quickstart — Windows

Warning — Experimental platform: Windows support for the SmartSpectra C++ SDK is experimental. If you have any issues running SmartSpectra, contact Presage support for assistance.

Supported Platforms

PlatformStatusNotes
Windows 10 / 11 (x64)ExperimentalZIP distribution available

For platforms not listed above, contact support@presagetech.com if you have a specific need.

Installation

Prerequisites

Install Visual Studio Build Tools 2022 or later with the Desktop development with C++ workload.

During installation, select the Desktop development with C++ workload and make sure C++ CMake tools for Windows is selected. The workload installs the MSVC compiler, Windows SDK, CMake, and the developer command prompt needed for the quickstart below.

You also need an API key from physiology.presagetech.com.

Add the SDK

Download smartspectra-sdk-<version>-windows-x64.zip from GitHub Releases and extract it to a permanent location, for example C:\SmartSpectra.

Keep the extracted layout intact — CMake config files, runtime DLLs, and bundled resources must stay in the locations expected by the package.

Permissions

No SDK-specific OS permission setup is required on Windows.

Example: CMake Project

This walkthrough sets up a minimal CMake project that reads from a camera and prints vitals to the console.

Result you should get

At the end, the app should show console output with:

  • a successful CMake configure and build
  • Processing... Press Ctrl+C to stop.
  • Cardio metrics: log lines when cardio metrics are available
  • Breathing metrics: log lines when breathing metrics are available
  • a clean exit after you stop the sample

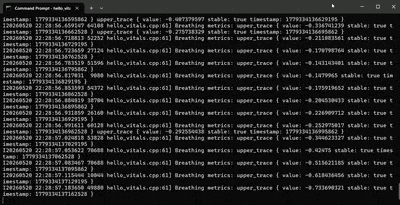

SmartSpectra C++ Windows quickstart demo

1. Open the developer command prompt

Open the Windows Start menu and search for x64 Developer Command Prompt. Choose the x64 developer command prompt installed by Visual Studio Build Tools.

For a default Build Tools installation, that shortcut launches:

C:\Windows\System32\cmd.exe /k ""C:\Program Files (x86)\Microsoft Visual Studio\2022\BuildTools\Common7\Tools\VsDevCmd.bat" -arch=x64 -host_arch=x64"

If you installed Build Tools somewhere else, update the VsDevCmd.bat path to match that installation.

2. Create the project files

Create a folder, for example C:\Projects\HelloVitals, and add these two files inside it.

CMakeLists.txt:

cmake_minimum_required(VERSION 3.22.1)
project(HelloVitals CXX)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

set(SMARTSPECTRA_SDK_DIR "$ENV{SMARTSPECTRA_SDK_PATH}")
if (SMARTSPECTRA_SDK_DIR STREQUAL "")
    message(FATAL_ERROR "SMARTSPECTRA_SDK_PATH is not set.")
endif ()

list(APPEND CMAKE_PREFIX_PATH "${SMARTSPECTRA_SDK_DIR}")
find_package(SmartSpectra CONFIG REQUIRED)

add_executable(hello_vitals hello_vitals.cpp)
target_link_libraries(hello_vitals SmartSpectra::SDK)

# Stage the Windows runtime DLLs next to the executable. The SDK ZIP owns this
# runtime set; copy every DLL from bin/ so required dependencies such as
# vulkan-1.dll and the versioned OpenCV runtime stay in sync with the package.
file(GLOB SMARTSPECTRA_RUNTIME_DLLS
    "${SMARTSPECTRA_SDK_DIR}/bin/*.dll")
if (NOT SMARTSPECTRA_RUNTIME_DLLS)
    message(FATAL_ERROR "No SmartSpectra runtime DLLs found in ${SMARTSPECTRA_SDK_DIR}/bin.")
endif ()

# Write smartspectra_manifest.json next to the executable. The SDK dir
# typically contains backslashes on Windows, so escape them (and any
# embedded quotes) before interpolating into the JSON literal.
string(REPLACE "\\" "\\\\" _smartspectra_manifest_root "${SMARTSPECTRA_SDK_DIR}/share/smartspectra")
string(REPLACE "\"" "\\\"" _smartspectra_manifest_root "${_smartspectra_manifest_root}")
file(GENERATE
    OUTPUT "$<TARGET_FILE_DIR:hello_vitals>/smartspectra_manifest.json"
    CONTENT "{\n  \"resource_root_dir\": \"${_smartspectra_manifest_root}\"\n}\n")

add_custom_command(TARGET hello_vitals POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E copy_if_different
            ${SMARTSPECTRA_RUNTIME_DLLS}
            "$<TARGET_FILE_DIR:hello_vitals>"
    VERBATIM)

hello_vitals.cpp:

This example also lives in smartspectra/cpp/samples/hello_vitals/.

#include <smartspectra/messages/metrics.h>
#include <smartspectra/smartspectra.h>
#include <smartspectra/smartspectra_config.h>

#include <chrono>
#include <csignal>
#include <cstdlib>
#include <iostream>
#include <string>
#include <thread>

namespace spectra = presage::smartspectra;

namespace {

volatile std::sig_atomic_t g_stop_requested = 0;

void HandleSignal(int) {
    g_stop_requested = 1;
}

std::string ResolveApiKey(int argc, char** argv) {
    if (argc > 1) {
        return argv[1];
    }
    if (const char* key = std::getenv("SMARTSPECTRA_API_KEY")) {
        return key;
    }
    return {};
}

}  // namespace

int main(int argc, char** argv) {
    std::signal(SIGINT, HandleSignal);
    const std::string api_key = ResolveApiKey(argc, argv);
    if (api_key.empty()) {
#if defined(_WIN32)
        std::cerr << "Usage: .\\hello_vitals.exe YOUR_API_KEY\n"
                  << "or set SMARTSPECTRA_API_KEY=YOUR_API_KEY\n";
#else
        std::cerr << "Usage: ./hello_vitals YOUR_API_KEY\n"
                  << "or export SMARTSPECTRA_API_KEY=YOUR_API_KEY\n";
#endif
        return 1;
    }

    spectra::SmartSpectraConfig config;
    config.api_key = api_key;
    config.requested_metrics = spectra::SmartSpectraConfig::BreathingMetrics();
    config.AddMetrics(spectra::SmartSpectraConfig::CardioMetrics());

    spectra::SmartSpectra sdk(config);
    sdk.SetOnMetrics([](const spectra::Metrics& metrics, int64_t) {
        if (metrics.has_cardio()) {
            std::cerr << "Cardio metrics: "
                      << metrics.cardio().ShortDebugString() << "\n";
        }
        if (metrics.has_breathing()) {
            std::cerr << "Breathing metrics: "
                      << metrics.breathing().ShortDebugString() << "\n";
        }
    });
    sdk.SetOnValidationStatusChanged(
        [have_last_status = false,
         last_code = spectra::ValidationCode::kOk,
         last_hint = std::string{}](const spectra::ValidationStatus& status, int64_t) mutable {
            if (have_last_status &&
                status.code == last_code &&
                status.hint == last_hint) {
                return;
            }
            have_last_status = true;
            last_code = status.code;
            last_hint = status.hint;
            std::cerr << "Validation [" << status.code
                      << "]: " << status.hint << "\n";
        });
    sdk.SetOnError([](const spectra::SmartSpectraError& error) {
        std::cerr << "Error [" << static_cast<int>(error.code)
                  << "]: " << error.message << "\n";
    });

    const auto source_error =
        sdk.UseCamera().SetResolution(1280, 720).SetFps(30).Build();
    if (!source_error.ok()) {
        std::cerr << "Failed to create camera source: "
                  << source_error.message << "\n";
        return 1;
    }

    if (const auto err = sdk.Start(); !err.ok()) {
        std::cerr << "Failed to start: " << err.message << "\n";
        return 1;
    }

    std::cout << "Processing... Press Ctrl+C to stop.\n";
    while (!g_stop_requested) {
        std::this_thread::sleep_for(std::chrono::milliseconds(200));
    }
    if (const auto err = sdk.Stop(); !err.ok()) {
        std::cerr << "Stop failed: " << err.message << "\n";
    }
    return 0;
}

3. Build

Navigate to your project folder with the two files, for example:

cd /d C:\Projects\HelloVitals

Configure and build with CMake. Update C:\SmartSpectra if you extracted the SDK somewhere else.

set "SMARTSPECTRA_SDK_PATH=C:\SmartSpectra" && cmake -S . -B build -G "NMake Makefiles" -DCMAKE_BUILD_TYPE=Release && cmake --build build

4. Run

Pass the API key as an argument:

Run the executable from the same developer command prompt:

.\build\hello_vitals.exe YOUR_API_KEY

Or set it once in the shell:

set "SMARTSPECTRA_API_KEY=YOUR_API_KEY" && .\build\hello_vitals.exe

The SDK DLLs are copied next to hello_vitals.exe by the post-build step in CMakeLists.txt, so no PATH setup is required.

You should see breathing and cardio metrics printed to the console within a few seconds of the camera starting. Press Ctrl+C to stop the sample.

What success looks like

When your program is running, you should see all of these:

  • Processing... Press Ctrl+C to stop. prints after launch
  • the camera starts without a source creation error
  • Cardio metrics: or Breathing metrics: logs print while you sit centered and well-lit
  • the process exits after Ctrl+C without a Stop failed message

Expected API key check

The first measurement should start after the executable launches with a valid API key argument or SMARTSPECTRA_API_KEY environment variable. If startup fails with an authentication error, verify that the key is authorized for this app and that the shell value did not include extra quotes or whitespace.

Common manual mistakes

If the console output does not match the target state, check these first:

  • the ZIP was extracted into a different folder than SMARTSPECTRA_SDK_PATH
  • the project was built outside the x64 developer command prompt
  • the API key argument or SMARTSPECTRA_API_KEY environment variable is missing
  • the post-build step did not copy the SDK DLLs next to the executable
  • another app is already using the camera
  • the executable is an older build from before the latest source change

Additional Details

Metric selection

Adjust the metric bundles in hello_vitals.cpp before building:

config.requested_metrics = spectra::SmartSpectraConfig::BreathingMetrics();
config.AddMetrics(spectra::SmartSpectraConfig::CardioMetrics());

Available bundles: BreathingMetrics(), CardioMetrics(), FaceMetrics().

ZIP layout reference

include/
  smartspectra/                    # C++ SDK headers and protobuf metric headers
  smartspectra/interface/          # Bundled third-party headers
  smartspectra_capi.h              # C ABI shim for FFI consumers
lib/
  smartspectra.lib                             # C++ SDK import library (MSVC)
  smartspectra_capi.lib                        # C ABI shim import library
  SmartSpectra_MessageProtos_*.lib             # Message proto static libs
  cmake/SmartSpectra/SmartSpectraConfig.cmake  # CMake package
bin/
  smartspectra.dll            # C++ SDK runtime DLL — must ship with your app
  smartspectra_capi.dll       # C ABI shim runtime DLL — required for FFI consumers
  vulkan-1.dll                # Vulkan loader used by the default inference backend
  smartspectra_manifest.json
  opencv_world*.dll           # OpenCV runtime dependency — must ship with your app
share/smartspectra/           # Bundled graph and model resources

When you ship your app to other machines, copy every DLL from the SDK bin/ directory and the contents of share/smartspectra/ next to the executable (or onto the PATH).

Next Steps

Troubleshooting

If the app starts but can't find DLLs, verify that smartspectra.dll, opencv_world*.dll, and other SDK DLLs from the extracted ZIP are present next to the executable or on the Windows DLL search path.

If you are upgrading an older C++ integration, see the C++ Migration Guide.

For support: contact support@presagetech.com or submit a GitHub issue.
